Foldable Cornhole Boards

Kelsey Cahill

Download Plans

*The plans include a material cut list, a list of necessary tools & hardware, assembly directions, and dimensions.

Build your own cornhole boards that fold into lightweight portable carrying case. The plans include a material cut list, a list of necessary tools & hardware, assembly directions, and dimensions. The overall dimensions of the cornhole boards are the regulation 24″x48″.

Helpful tips: Always work on a clean level surface, free of imperfections or debris. Always use straight boards. Check for square after each step. Always pre-drill holes before attaching with screws. Use glue with finish nails for a stronger hold. Wipe excess glue off bare wood for stained projects, as dried glue will not take stain. Be safe, have fun, and ask for help if you need it. Good luck!

Also, follow me on Pinterest or Instagram to get the first look on what I am working on next.

Tools

Don’t have a specific tool? Click the item below to purchase it from Amazon.

Shopping List

Instructions

Step

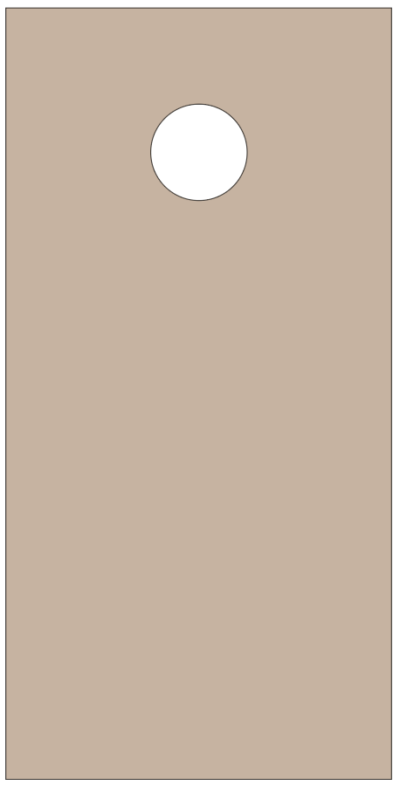

Start by cutting the 1/4” plywood to the specified dimensions for the board surface. Use a 6” hole saw to cut out the center hole. Make sure the hole is positioned 9” down by 24” over. Repeat for other board.

Foldable cornhole boards
Step

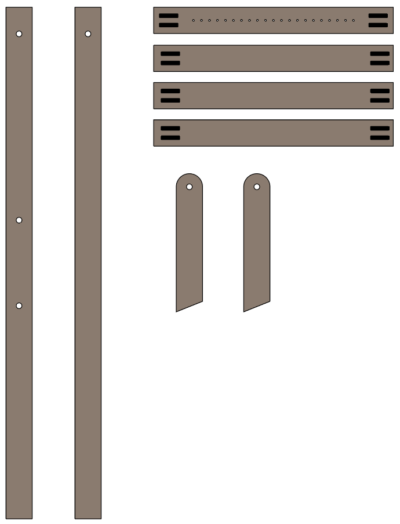

Cut all the boards to the specified dimensions. The angle for the legs should be cut at 30 degrees and use a jig saw to curve the opposite end. Then, drill 1/2” holes with the paddle bit in the legs and side boards for the bolts. Next, in all of the 22 1/2” boards, pre-drill the holes for the Kregg Screws. The black rectangles in the drawing below indicated the pre-drilled holes for the Kregg screws. Finally, in one of the 22 1/2” boards, drill 21 holes, 3/4” apart for the peg score board. Repeat for other board.

DIY Cornhole Boards for weddings
Step

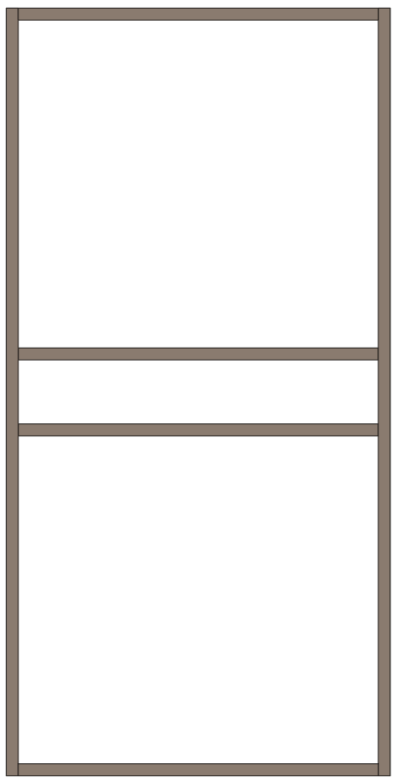

Asseble all the parts. Start with the outside boards. Be sure to use wood glue on all joints and make sure all Kregg screws are assembled from the inside. Also, the score board must be assembled on the same end with the legs. Once the outside boards are screwed together, attach the inner supports. Finally, glue and nail on the surface board. Repeat for other board.

DIY Cornhole Board plans
Step

Attached all hardware. Start with the legs. Use the carriage bolt and hex nut to attach the legs. Tighten the bolt enough to allow the legs to swing. Next, place each cornhole board on top of one another with the board surface facing out. Attach the hinges and latches. Then, cut the rope in equal lengths and thread through each hole. Tie a knot on each end to prevent the rope from pulling through. Finally, paint the boards to your desired color or find vinyl wrap. Enjoy!

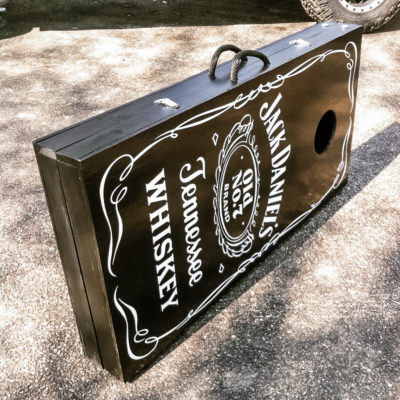

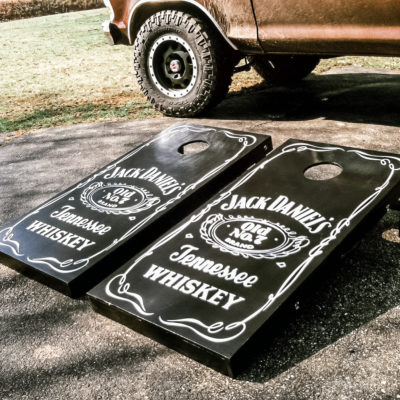

Jack Daniels Cornhole Boards Portable
Download Plans

*The plans include a material cut list, a list of necessary tools & hardware, assembly directions, and dimensions.
